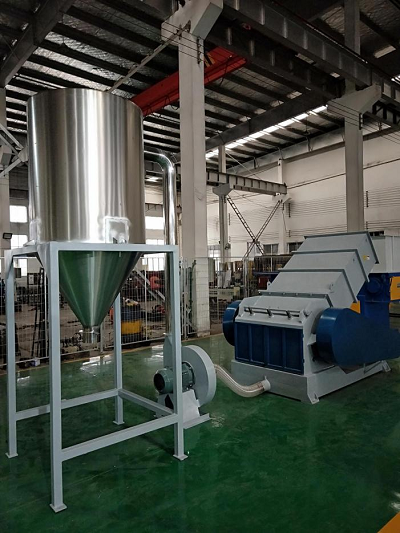

破碎机型号 Crusher model:

PM1000

Remarks

旋转刀直径

Rotary cutter diameter

420mm

刀架厚度

Tool holder thickness: 100mm

主轴有效宽度

Effective width of spindle

1000mm

旋转动刀刀数

Number of rotating moving tools

10把X3组共30把

10 X3 groups, 30 in total

95mm*100mm*22mm

固定刀刀数

Number of fixed knives:

2把X2组共4把

2 sets, X2 sets, 4 sets in total

100mm*500mm*22mm

刀片材质 Blade material

D2

旋转刀轴转速

Rotating cutter shaft speed

550rpm

箱体板厚度

Thickness of box plate

30mm

轴承 Bearing

22320AC/W33

Wafangdian

轴承座 Bearing pedestal

浇钢 Cast steel External

外置

筛网孔径 Screen aperture

Φ12mm

电机功率 Motor power

55KW

Jiangsu Lido

成品尺寸 Finished product size

12mm以下

Below 12mm

皮带轮pulley:

560mm

皮带 Belt:

B型5槽

Type B 5 groove

开箱装置 Unpacking device:

手动螺杆 Manual screw

进料口尺寸 Inlet size

1030mm*450mm

厚度

Thickness 4mm

破 碎 能 力

Crushing capacity

700-1000㎏/h

外形尺寸 Overall dimensions:

长2100*宽1550*高1900

Length2100 * width 1550 * height 1900

设备重量 Equipment weight:

约3500KG About 3500kg

出料方式 Discharging method:

吸料风机 Suction fan

连接管道 Connecting pipes:

钢丝管直径

Steel pipe diameter 159mm

不锈钢

stainless steel

电器 Electric appliance:

德力西

储料仓 Storage bin

2T

不锈钢

stainless steel

吸料风机功率 Suction fan power

4KW

下料口离地面 The blanking opening above the ground

800mm

支架 Bracket

1500*1500

除尘方式 Dust removal mode

布袋除尘 Bag dust removal
