1

Materials

PET raw materials , or PET flaks 100% recycled materials

2

Product

PET strap band (1 mold for 2 out)

3

Capacity

around 180-240kg/h

4

Install power

280kw,Normal using power:110-120KW, (380V 50 Hz 3Ph) (Adjustable according to your local voltage standard)

5

Line speed

80-100m/min

6

Strap width

9-20mm(adjustable)

Tolerance thickness Of PET strip:±0.5

7

Thickness

0.6~1.2mm(adjustable)

Tolerance width of PET strips：±0.05

8

Labor cost

Two person/shift (each shift will take 8 hours or 12 hours for per day)

9

Workshop required

L (45m)*W (3~5m)*H (4~7m)

10

Water supply

Equipped by user，Cooling water flow：5 m3/h input water temperature w <20℃

11

Compression air consumption

0.6m3/min Compression air pressure 0.6Mpa

12

Advantage

①.Accurate quantitative give and the material mixing

②.Metering pump continuous work to guarantee stable product.

③.Large capacity of the stainless steel water cooling tank

④.Automatic control liquid level

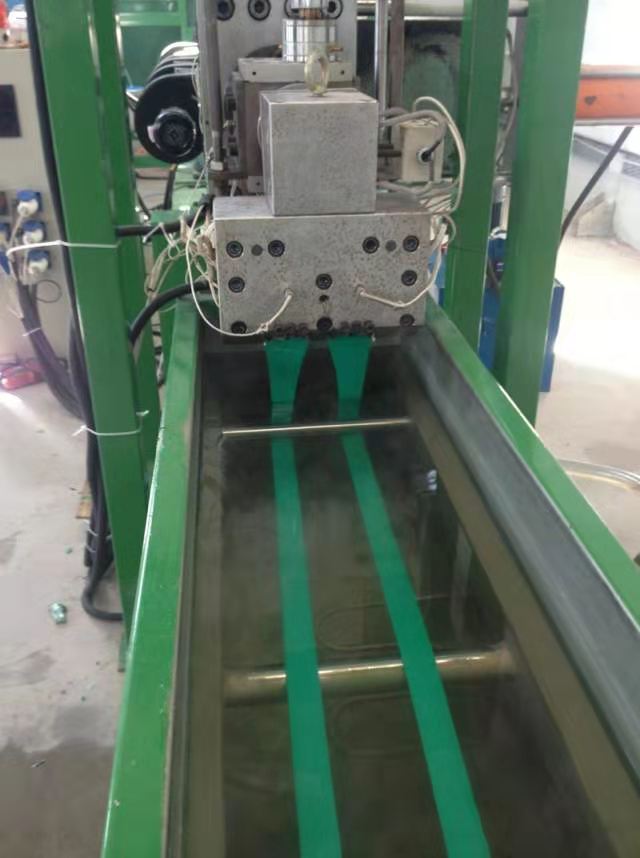

⑤.One mould outlet two,improve the production capacity and save the costs.

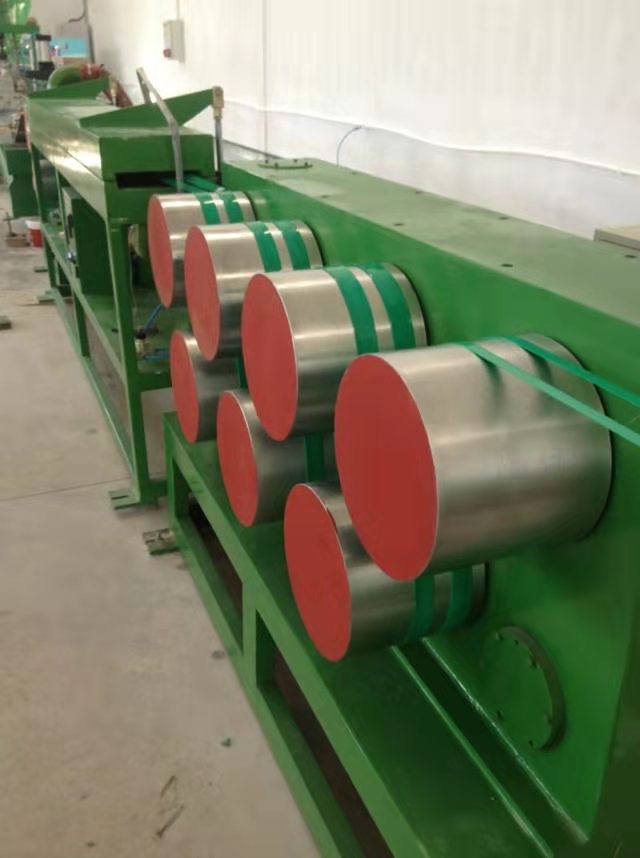

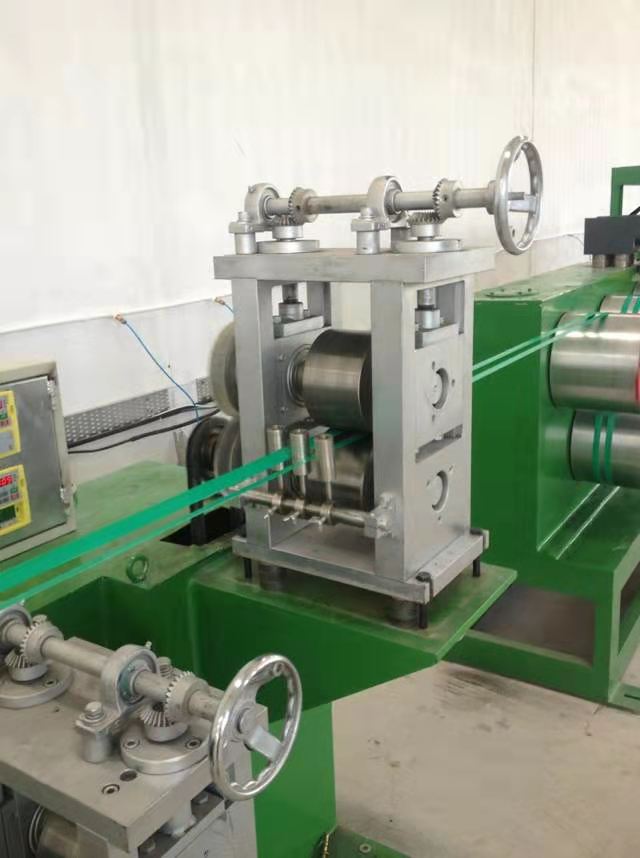

⑥.Preheating & stretching & haul-ff machine adopts gear transmission

13

Power source

AC380V±10% ;50Hz (according to customer requirement)
