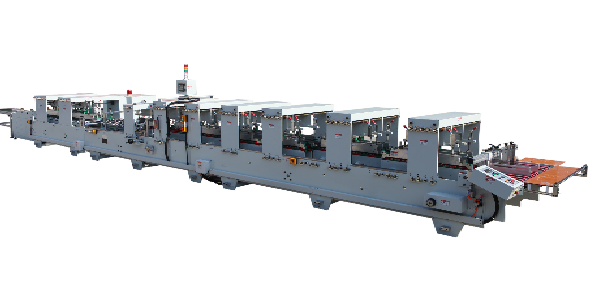

》功能配置:Functional configuration:
》送料部:Feeding Part
1, 西门子电机传动,变频器调速, 与主机变频器实现比例联动。
2, 25mm宽×9条送料皮带,可视盒型调节皮带间距。
3, 精密出料刀设计,出料稳定高速。
4, 结构长约600mm,宽约1250mm,高约1200mm。
1. Siemens motor drive, frequency converter speed regulation, and the main converter to achieve proportional linkage.
2. 25mm wide by 9 feeding belts, adjusting belt spacing by visual box.
3. Precision discharge knife design, stable and high-speed discharge.
4. The structure is about 600 mm long, 1250 mm wide and 1200 mm high.
》折合部:Fold part
(1) 折线可视舌头上胶内外贴合情况,可调节右嵌板,经外折带折第3或第4折线。
(2) 折线可视舌头上胶内外贴合情况,可调节左嵌板,经外折带折第1或第2折线。
(3) 左右两板独立可调节嵌板,视盒型调节间距,独特设计,操作方便,调机快速。
(4) 左右下嵌板皮带宽度为25mm;左右上嵌板皮带宽度为20mm;左右外折皮带宽度为25mm。外折最新设计,折叠更加顺畅。
(1)Folding line can be seen on the tongue glue inside and outside the bonding situation, can adjust the right panel, fold the third or fourth folding line through the folding belt.
(2)Folding line can be seen on the tongue glue inside and outside the bonding situation, can adjust the left panel, fold the first or second folding line through the folding belt.
(3) The left and right boards can be adjusted independently. The distance between the boxes can be adjusted. It is unique in design, easy to operate and quick to adjust.
(4)The width of left and right lower panel skin is 25 mm; the width of left and right upper panel skin is 20 mm; and the width of left and right outer folding skin is 25 mm. The latest design of folding out makes folding more smoothly.
》压合部:Compression part
左,中,右(上下皮带)三板独立可移动嵌板,可视盒型调节嵌板距离完成产品胶水压合功能。
left, middle, right (upper and lower belt) three independent movable panels, visual box adjusting panels distance to complete product glue bonding function.
》收料部:Receiving part
自动点数功能。
Automatic counting function.
